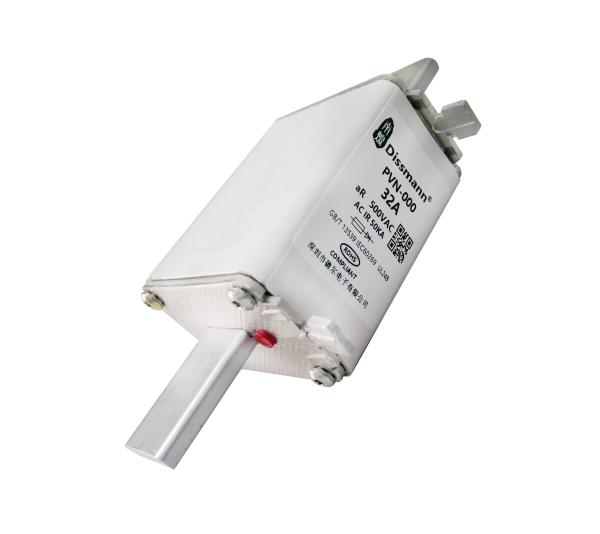

Energy Storage Low Current Fuse , Ul 248 Fuse Breaking Capacity DC50KA

Name: Energy Storage Low Current Fuse Ul 248 Fuse Breaking Capacity DC50KA
Brand: Dissmann
Price: 1 USD

Buy cheap Energy Storage Low Current Fuse , Ul 248 Fuse Breaking Capacity DC50KA product

Brand Name : Dissmann

Model Number : PVN-000

Certification : CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Rated Voltage : 500VAC

Rated Current : 32A

Breaking Capacity : DC50KA/AC120KA

Standard : IEC60269、ROHS

Usage : Charging Pile,PDU,UPS

Keyword : Solar PV Fuses

Contact Now

PV Fuse Solar Fuse Low Current Fuse UL Fuse Energy Storage Fuse

Material:
Noumenon: Ceramic
Pins: Copper alloy

Product Presentation:

Rated Voltage

额定电压

AC500V / DC250V

Type Protection

保护类别

Rated Current 额定电流

2A-100A

Breaking Capacity

分断能力

AC120KA

Meet the Requirement

符合要求

IEC60269,

欧盟和RoHS 指令

Remarks

备注

产品外形尺寸(mm)/Overall dimensions of the product(mm)

产品型号/Product type

Model 型号	Rated Current 额定电流A	Power dissipation 功耗W
Model 型号	Rated Current 额定电流A	Power dissipation 功耗W
PVN-000-002	2A	1.9
PVN-000-004	4A	1.5
PVN-000-006	6A	1.6
PVN-000-010	10A	1.1
PVN-000-016	16A	1.8
PVN-000-020	20A	2.3
PVN-000-025	25A	2.4
PVN-000-032	32A	3.1
PVN-000-035	35A	3.0
PVN-000-040	40A	3.7
PVN-000-050	50A	4.1
PVN-000-063	63A	5.4
PVN-000-080	80A	6.5
PVN-000-100	100A	7.5

Energy Storage Low Current Fuse , Ul 248 Fuse Breaking Capacity DC50KA

Test equipment

Production equipment

Our Certificates

Hot Tags: China, manufacturers, suppliers, factory, fuse link, fuse link wire amp rating, Fuse Replace SinoFuse, Maxi Blade Fuse, Equivalent To Eaton Bussmann Fuses, European Square Fuse Semiconductor Protection Fuse,AC 120KA high breaking capacity fuse,Solar PV Fuses

Product Tags:

Ul Low Current Fuse

DC50KA Low Current Fuse

Energy Storage ul 248 fuse

Energy Storage Low Current Fuse , Ul 248 Fuse Breaking Capacity DC50KA Images
