EV bolt type fuse for power battery
Product description of EV fuse
Rated Current:225A
Rated Voltage:DC1000V
Breaking Capacity:DC20KA,AC100KA
Related Standard:GB13539,IEC60269,UL248,GB31465,RoHS and EU detective.
Installation:aR
Product characteristic
| Model | Rated current | 100%--1h Voltage drop mV | Size code | Installation |
| EV-J-Q-225 | 225 | 194 | VJ2 | Install Bolt M10, Recommend Torque: 20N.m |
Dimension of EV fuse
Size code of EV -J-Q fuse,Choose the code according to the rated current.
| Model | Size code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-J-Q | VJ1 | 116 | 30.4 | 75.5 | 97 | 9 | 25 | 4 | 13 |
| VJ2 | 139.75 | 37.3 | 75.75 | 108.75 | 11 | 25 | 6 | 15 |
| VJ3-1 | 148 | 53.5 | 90.1 | 117.9 | 12.5 | 40 | 8 | 20 |
| VJ3-2 | 173 | 53.5 | 114.7 | 143 | 12.5 | 40 | 6 | 20 |
VJ1:Available in mounting bolt M8 recommended torque 11N·m,rated current range of 30A-150A
VJ2:Available in mounting bolt M10 recommended torque 20N·m,rated current range of 175A-325A
VJ3-1:Available in mounting bolt M12 recommended torque 28N·m,rated current range of 350A-500A
VJ3-2:Available in mounting bolt M12 recommended torque 28N·m,rated current range of 600A-800A
Product system code

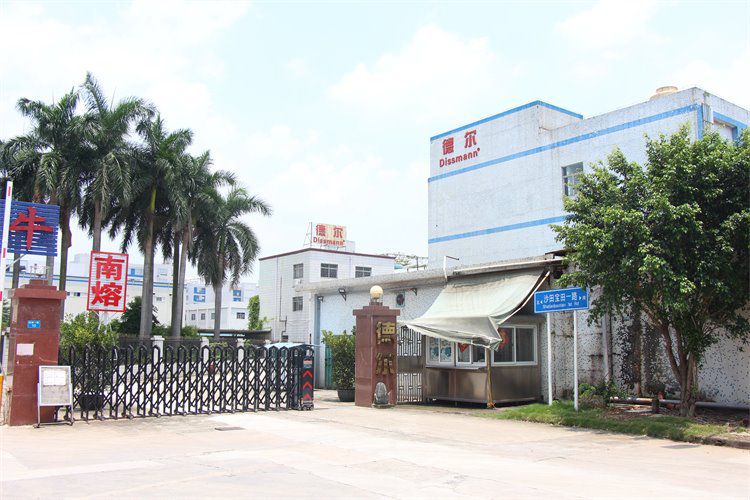

Dissmann®Factaory Display

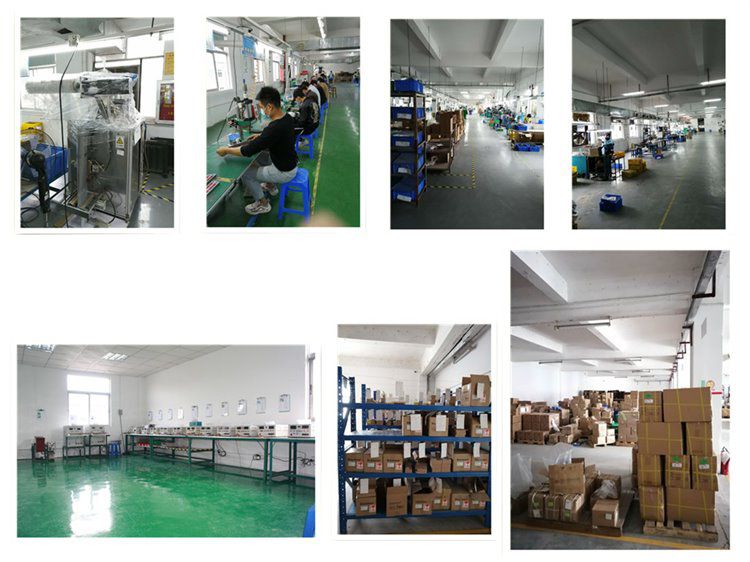

Dissmann® Fuse workshop display
Current Temperature Characteristic Curve
Packing method, shipping, storage
Avoid rain and snow and mechanical damage during packaging and transportation.
Storage temperature
Products storage temperature: -40°C ~ 105°C. The relative humidity is not more than 70% when 40°C. The relative humidity is not more than 80% when 30°C. The relative humidity is not more than 90% below 20°C.
Packaging storage temperature: -40°C ~ 70°C. The relative humidity is not more than 40% when 40°C. The relative humidity is not more than 50% when 30°C. The relative humidity is not more than 90% below 20°C, no condensation.
Fuses can be stored for average 1 year when the relative humidity ≦75%.
Not in the open air, fuses can be stored at most 30 days when the relative humidity 95%.
The number of stacking layers of the outer packaging carton does not exceed 5 layers; the total stacking height does not exceed 1.5m, and should take measures to prevent collapse.
Fireproof, waterproof, and avoid contact with liquid, prevent sharp objects from penetrating, damage the cabinet, avoid contact with corrosive substances and gases.
Conditions of use
Normal use conditions and parameter correction
The fuses work normally under the following normal conditions without any additional correction.
When it exceeds the normal using conditions, some parameters or consultation may need to be corrected if they are within the allowable using conditions. If it is beyond the scope of allowable using conditions, you should consult our company, and carry out the work adaptability evaluation and test of the conditions.
It is recommended that the current value of long-term current shall not be greater than 80% of the rated current. For over-temperature use, please refer to the temperature evaluation curve above.
Altitude: Altitude of the installation site not more than 2000m. If Altitude is more than 2000m, the rated voltage needs to reduce. 2000~4000m, when altitude rise 1000m, the rated voltage reduce 90%.
Ambient Air Temperature
Normal using conditions: -5°C ~ 60°C.
Permitted conditions: -55°C ~ 120°C.
