Ev Charging Pile IEC Standard EV Fuses , UL248 Certified Ceramic Tube Fuses

Name: Ev Charging Pile IEC Standard EV Fuses UL248 Certified Ceramic Tube Fuses
Brand: Dissmann
Price: 1 USD

Buy cheap Ev Charging Pile IEC Standard EV Fuses , UL248 Certified Ceramic Tube Fuses product

Brand Name : Dissmann

Model Number : EV-J-Q

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : TT/LC

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Rated Current : 300A

Rated Voltage : DC1000

Type of protection : aR

Breaking capacity : AC100KA、DC20KA

Meet the requirement : UL248-20、ISO8820、JASO-D622、EU and RoHS detective

Application : electric vehicle drive power system, power conversion system, energy storage and power battery

Keyword : EV charger fuse

Contact Now

EV charger fast acting fuse manufacture in China

Specification of EV fuse

Material	Body :Ceramic Caps :Copper alloy tin plating Terminal : Copper alloy tin plating
Characteristic	Use in electric vehicles charging protection boards
Interrupting Rating	AC100KA at 1000VDC
Ampere Raing	10A-800A
Voltage ( DC)	1000VDC
Voltage(AC)	1000VAC
Permissible Conditions of Use	-55℃～120℃
Green Mark	RoHS
Safety Approvals	UL
Safety Approvals	UL

Product characteristic of 300 amp EV fuse

Model

Rated current

100%--1h Voltage drop

Size code

Installation

EV-J-Q-300

300

117

VJ2

Install Bolt M10,

Recommend Torque: 20N.m

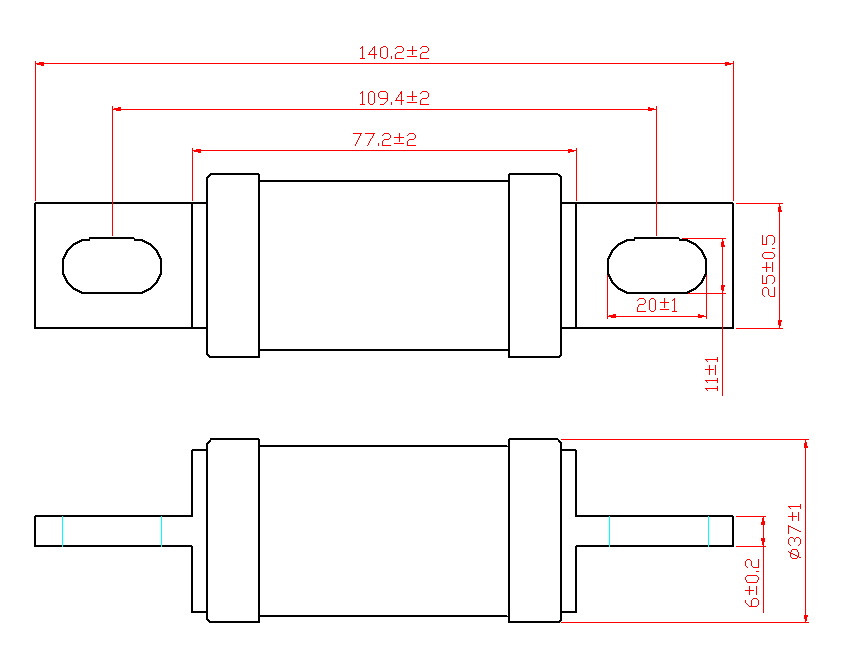

Dimension of 300 amp EV fuse

Ev Charging Pile IEC Standard EV Fuses , UL248 Certified Ceramic Tube Fuses

Size code of EV -J-Q fuse,Choose the code according to the rated current.

Model	Size code	A±2	B±1.5	C±1	D±1.5	F±1	G±0.5	H±0.2	J±1
EV-J-Q	VJ1	116	30.4	75.5	97	9	25	4	13
	VJ2	139.75	37.3	75.75	108.75	11	25	6	15
	VJ3-1	148	53.5	90.1	117.9	12.5	40	8	20
	VJ3-2	173	53.5	114.7	143	12.5	40	6	20

Product system code

Ev Charging Pile IEC Standard EV Fuses , UL248 Certified Ceramic Tube Fuses

Dissmann®Factaory Display

Ev Charging Pile IEC Standard EV Fuses , UL248 Certified Ceramic Tube Fuses

Dissmann® Fuse workshop display

Ev Charging Pile IEC Standard EV Fuses , UL248 Certified Ceramic Tube Fuses

FAQ

Question:Does your EV series products meet the UL standard?

Answer:Our EV series products have obtained UL certification, which meets UL248 standards.
