6.3x32mm Ceramic Fuse UL Certified Dissmann HDP6 series 500VDC/VAC fuse Can be Used to Replace Littelfuse 505 Series fuse
HDP601
Product dimension drawing of HDP6XX

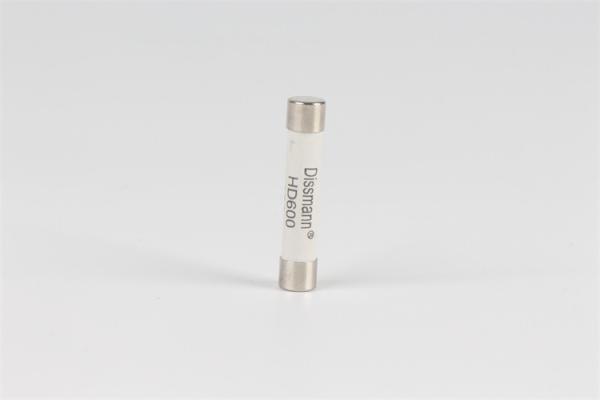

HD600
Product dimension drawing of HD6XX
Dissmann fuse HD/HDP6 series 500VAC/500VDC ceramic fuse Including the following 3 models:
1. HD601/HDP601 Rated Voltage:500VAC Rated Current:1-30A Breaking Capacity:1500A
2. HD602/HD602 Rated Voltage:500VDC Rated Current:1-30A Breaking Capacity:1500A
3. HD603/HDP603 Rated Voltage:500VAC/500VDC Rated Current:1-30A Breaking Capacity:1500A
Suitable for circuit protection in high energy applications.
| HD/HDP601 500VAC |
| 产品代码 | 额定电流 A | I²t | 100%电压降 |
| (A²Sec) | mV |
HD601
HDP601 | 1 | 0.75 | 575 |
| 2 | 2.93 | 851 |
| 3 | 3.94 | 422 |
| 4 | 11 | 311.6 |
| 5 | 30 | 299 |
| 8 | 91 | 244.1 |
| 10 | 164.3 | 242.8 |
| 15 | 235 | 190.6 |
| 20 | 464 | 196.2 |
| 25 | 1193 | 170.6 |
| 30 | 1858 | 154.7 |
| HD/HDP602 500VDC |
| 产品代码 | 额定电流 A | I²t | 100%电压降 |
| (A²Sec) | mV |
HD602
HDP602 | 1 | 0.75 | 575 |
| 2 | 2.93 | 851 |
| 3 | 3.94 | 422 |
| 4 | 11 | 311.6 |
| 5 | 30 | 299 |
| 8 | 91 | 244.1 |
| 10 | 164.3 | 242.8 |
| 15 | 235 | 190.6 |
| 20 | 464 | 196.2 |
| 25 | 1193 | 170.6 |
| 30 | 1858 | 154.7 |
| HD/HDP603 500VDC/500VAC |
| 产品代码 | 额定电流 A | I²t | 100%电压降 |
| (A²Sec) | mV |
HD603
HDP603 | 1 | 0.75 | 575 |
| 2 | 2.93 | 851 |
| 3 | 3.94 | 422 |
| 4 | 11 | 311.6 |
| 5 | 30 | 299 |
| 8 | 91 | 244.1 |
| 10 | 164.3 | 242.8 |
| 15 | 235 | 190.6 |
| 20 | 464 | 196.2 |
| 25 | 1193 | 170.6 |
| 30 | 1858 | 154.7 |

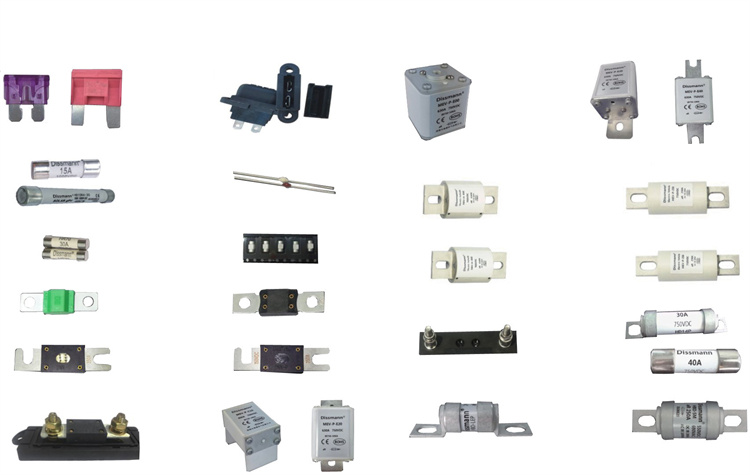

Other fuse you can choose from our factory:
The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
