Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module

  • 1
  • 2

Brand Name : Dissmann

Model Number : HDP6 series

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Material : Ceramic

Size : 6x32 mm

Rated Voltage : 300VDC-1000VDC

Rated Current : 1-40A

Protection Type : aR

Breaking Capacity : 10KA

UL Certification : E343461

Contact Now

Dissmann HDP6 series Ceramic fuse 6x32mm High Voltage fuse for Charging Pile Module UL Certified made in China

Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module

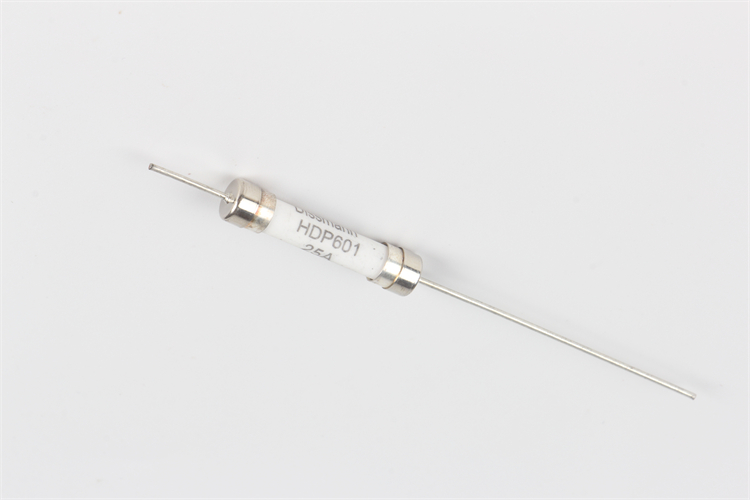

HDP601



Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module

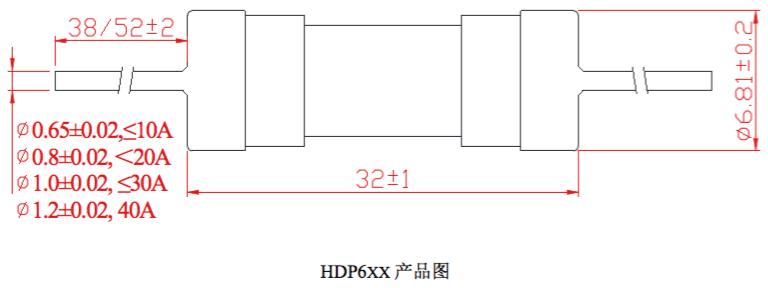

Product dimension drawing of HDP6XX



Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module

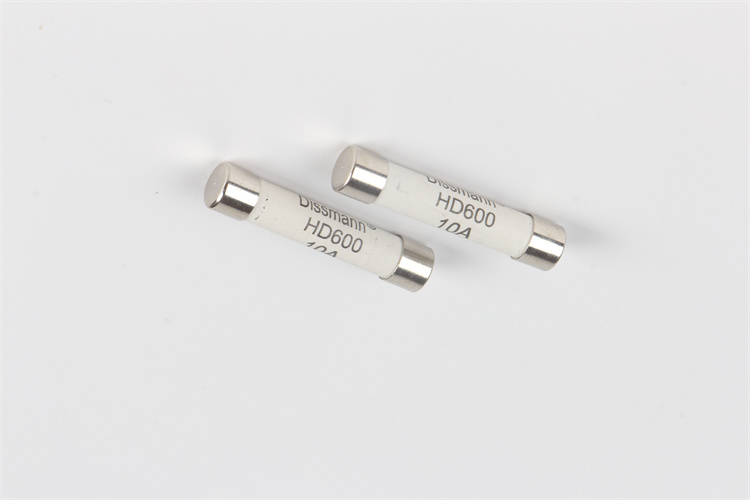

HD600



Dissmann HDP6 Series Ceramic Fuse 6x32mm High Voltage Fuse For Charging Pile Module

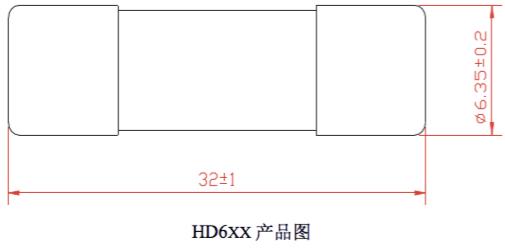

Product dimension drawing of HD6XX



The Dissmann HD/HDP6 series fuse include Including the following rated voltage products:

1.HD/HDP6XX Rated Voltage:300VAC/300VDC Rated Current:1-15A；Breaking Capacity is:10000A；

2.HD/HDP6XX Rated Voltage:500VAC/500VDC  Rated Current:1-30A；Breaking Capacity is:1500A；

3.HD/HDP6XX Rated Voltage:600VAC/600VDC Rated Current:1-15A；Breaking Capacity is:10000A；

4.HD/HDP6XX Rated Voltage:660VAC/660VDC Rated Current:1-40A；Breaking Capacity is:10000A；

5.HD/HDP6XX Rated Voltage:750VAC/750VDC Rated Current:1-40A；Breaking Capacity is:10000A；

6.HD/HDP6XX Rated Voltage:1000VAC/1000VDC Rated Current:1-15A；Breaking Capacity is:10000A；



The specific optional model information is shown in the table below:



HD/HDP601 500VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD601
HDP601		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
HD/HDP602 500VDC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD602
HDP602		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
HD/HDP603 500VDC/500VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD603
HDP603		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
HD/HDP604 600VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD604
HDP604		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP605 600VDC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD605
HDP605		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP606 600VDC/600VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD606
HDP606		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP607 1000VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD607
HDP607		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP608 1000VDC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD608
HDP608		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP609 1000VDC/1000VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD609
HDP609		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP610 300VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD610
HDP610		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP611 300VDC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD611
HDP611		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP612 300VDC/300VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD612
HDP612		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
HD/HDP613 660VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD613
HDP613		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
40 4441 207.5
HD/HDP614 660VDC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD614
HDP614		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
40 4441 207.5
HD/HDP615 660VDC/660VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD615
HDP615		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
40 4441 207.5
HD/HDP616 750VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD616
HDP616		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
40 4441 207.5
HD/HDP617 750VDC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD617
HDP617		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
40 4441 207.5
HD/HDP618 750VDC/750VAC
产品代码 额定电流 A I²t 100%电压降
(A²Sec) mV
HD618
HDP618		 1 0.75 575
2 2.93 851
3 3.94 422
4 11 311.6
5 30 299
8 91 244.1
10 164.3 242.8
15 235 190.6
20 464 196.2
25 1193 170.6
30 1858 154.7
40 4441 207.5
