Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating

Name: Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating
Brand: Dissmann
Price: 1 USD

Brand Name : Dissmann

Model Number : DKN-A

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : zinc alloy , plastic

Usage : Automotive

Breaking Capacity : DC1000A

Rated Voltage : 32VDC

Current : 3A ~ 40A

Keyword : fast acting fuse

Contact Now

Mini auto fuse blade fuse fast acting fuse low voltage fuse DC fuse

Material:
Base / Cap: PC
Pins: Zinc Alloy
Operating Temperature: -55 º C to +125 º C

Features:
Automotive Fuse
Many kinds of automotive fuse.
Current rating: 3A ~ 40A.
Voltage rating: 32Vdc
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock

Product presentation:

Rated Voltage

额定电压

32VDC

Characteristic

特性

F快断

Rated Current

额定电流

2A-30A

Breaking Capacity

分断能力

DC1000A

Meet the Requirement

符合要求

UL248,ISO8820,

欧盟和RoHS 指令

Remarks

备注

产品外形尺寸(mm)/Overall dimensions of the product(mm)

Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating

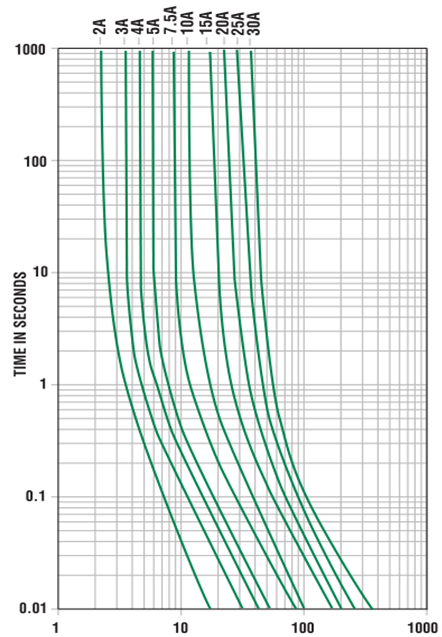

电流特性曲线图/Current characteristic curve

Withstand Capacity Mini Blade Car Fuses Fast Acting 40A Current Rating

产品型号/Product type

Model 型号	Product code 产品代码	Rated current 额定电流 A	I²t (A²Sec)	Voltage drop 电压降 mV	Pigment 颜色
DKN-A	DKN-A-2	2	2.8	170	灰色(Gray)
	DKN-A-3	3	9.3	152	浅紫色(Violet)
	DKN-A-4	4	17	120	粉红色(Pink)
	DKN-A-5	5	24	128	浅棕色(Tan)
	DKN-A-7.5	7.5	66	135	棕色(Brown)
	DKN-A-10	10	92	108	红色(Red)
	DKN-A-15	15	270	98	蓝色(Blue)
	DKN-A-20	20	380	96	黄色(Yellow)
	DKN-A-25	25	620	85	透明色(Clear)
	DKN-A-30	30	1120	86	绿色(Green)

性能标准/Performance criteria

测试电流项目 Test current item(A)	电流 Current	最小时间 Minimum time(s)	最大时间 Maximum time(s)
110%	2A-30A	360000	∞
135%	2A-30A	0.75	600
200%	2A-30A	0.15	5.0
350%	2A-30A	0.08	0.5
600%	2A-30A	0.03	0.1
