1000VDC High Speed Fuses , Semiconductor Energy Storage System Fuses

  • 1
  • 2
  • 3

Brand Name : Dissmann

Model Number : MEV-J-G70

Certification : UL，TUV

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Usage : Energy Storage systems,Photovoltaic,Solar inverter

Rated Voltage : 1000VDC

Current Rating : 700A

Keyword : Energy Storage Systems Fuses

Standard : IEC60269-4, UL248-13

Breaking Capacity : DC50KA

Contact Now

DC50KA High Breaking Capacity Energy Storage Systems Fuses



1.Basic Information:

Rated Voltage:1000VDC or lower

Rated Current:700A

Breaking Capacity:DC50KA

Class of protection:aR

Related Standards:IEC60269-4, UL248-13,EU and RoHS directives



2.Product Characteristics:

Model Rated Current (A) I²t(A²Sec) Power Loss (W) Installation
Pre-Arc After 1.0In
MEV-J-G70 700A 180,000 1,082,000 75.6 Bolt Install M12,
Recommend Torque: 28±11N.m



3.Product Application:

This series of products are square tube bolt fuse, low I²t, Strong current limiting capacity, high breaking capacity and other characteristics, suitable for rail transit, electric vehicles, ships and other industrial applications. It can be used as short circuit overcurrent and backup protection for energy storage system, power system, wire and other devices and equipment.



Note: All test data in this specification are measured in standard environment, test parameters and wiring according to IEC60269.

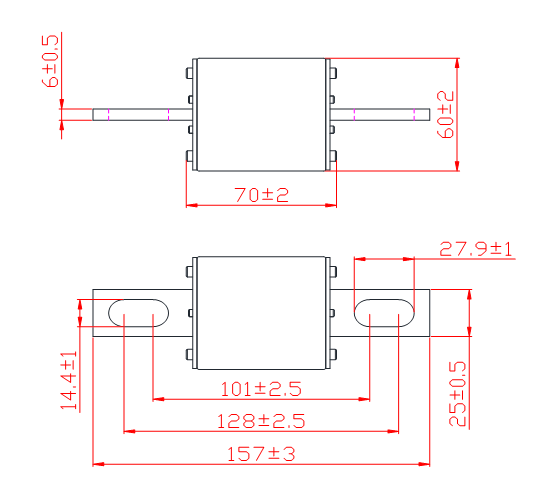

4.Product Dimension:

1000VDC High Speed Fuses , Semiconductor Energy Storage System Fuses



5.Installation conditions

Normal working conditions

The fuses are installed separately in unventilated natural air, in addition to connecting wires, no other heat generating parts or heat dissipating parts within 1m.



The fuse connection terminals should ensure stable and reliable electrical contact; contact resistance should not significantly affect fuse operation.



The fuse can be installed vertically, horizontally or obliquely. If relying on spring pressure to ensure electrical connection fuse, when installing, a suitable location should be selected to avoid the adverse effects of gravity and vibration on the electrical connection.



Test equipment
1000VDC High Speed Fuses , Semiconductor Energy Storage System Fuses

Production equipment
1000VDC High Speed Fuses , Semiconductor Energy Storage System Fuses
1000VDC High Speed Fuses , Semiconductor Energy Storage System Fuses

Our Certificates
1000VDC High Speed Fuses , Semiconductor Energy Storage System Fuses
