DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse

Brand Name : Dissmann

Model Number : DFN-A

Certification : UL248、ISO8820、RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Color : Yellow

Rated Voltage : DC32V

Rated Current : 20A

Type Protection : Fast-acting

Breaking Capacity : DC1000A

Size : Medium Automotive Blade Fuse

Contact Now

Dissmann® UL Certified DC32V 20A Automotive Blade Fuse Low Voltage Fuse

DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse





Specifications of the DFN-A series Automotive Blade Fuse:

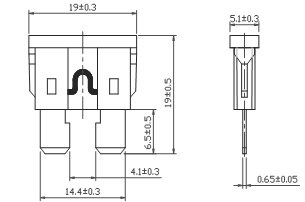

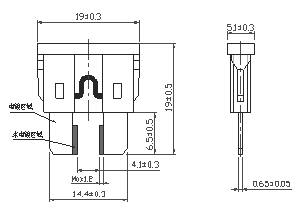

1.Shape and mounting dimensions of the blade fuse:

DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse      DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse





2.DFN-A series fuse model classification according to rated current :

Model

型号

Product code

产品代码

Rated current

额定电流 A

I²t

(A²Sec)

Voltage drop

电压降 mV

Pigment

颜色
DFN-A DFN-A-1 1 0.4 174 黑色(Black)
DFN-A-2 2 1.5 140 灰色(Gray)
DFN-A-3 3 6.3 137 浅紫色(Violet)
DFN-A-4 4 13 135 粉红色(Pink)
DFN-A-5 5 25 125 浅棕色(Tan)
DFN-A-7.5 7.5 56 115 棕色(Brown)
DFN-A-10 10 110 110 红色(Red)
DFN-A-15 15 295 102 蓝色(Blue)
DFN-A-20 20 480 96 黄色(Yellow)
DFN-A-25 25 1000 90 透明色(Clear)
DFN-A-30 30 1460 86 绿色(Green)
DFN-A-35 35 2205 88 深绿色(Dark green)
DFN-A-40 40 3200 95 橙色(Orange)

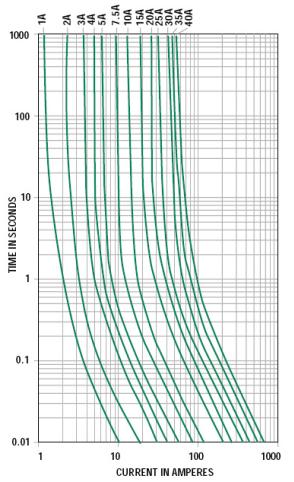

3.DFN-A series fuse Current Characteristic curve of the fuse:

DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse

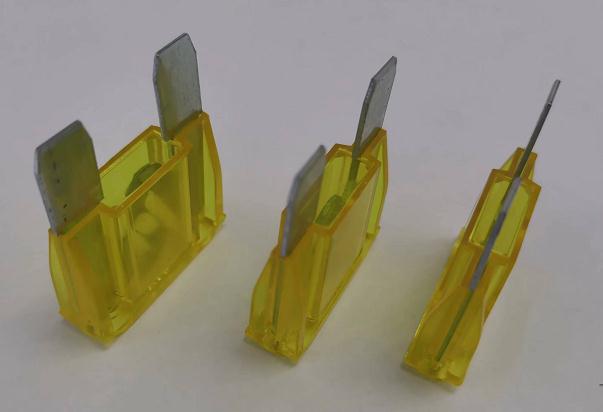

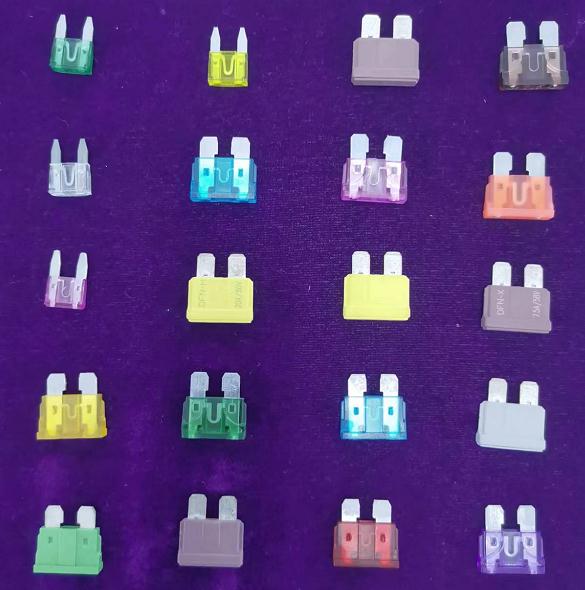

4.Dissmann® fuses can produce different kinds of automotive blade fuse, include mini size,medium size,large size:

DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse



5.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

DC32V 20A Automotive Blade Fuse , UL Certified Low Voltage Fuse

        Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.
