1000VDC High Voltage Ceramic Fuse Low Current ISO8820 Standard

Name: 1000VDC High Voltage Ceramic Fuse Low Current ISO8820 Standard
Brand: Dissmann
Price: 1 USD

Buy cheap 1000VDC High Voltage Ceramic Fuse Low Current ISO8820 Standard product

Brand Name : Dissmann

Model Number : MEV-J-D20

Certification : CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Rated Voltage : 1000VDC

Rated Current : 400A

Breaking Capacity : DC50KA

Standard : UL248-20、ISO8820、 JASO-D622、ROHS

Usage : Charging Pile,charging cabinet

Keyword : Charging pile fuse

Contact Now

Low Current Fuse High Voltage Fuse PV Fuse EV Fuse High Voltage Fuse

Material:
Noumenon: Ceramic
Pins: Copper alloy

Product Presentation:

Rated Voltage

DC/AC1000V

Type Protection

Rated Current

350A-500A

Breaking Capacity

DC50KA

(time constant≤10ms)

Meet the Requirement

UL248-13,ISO8820,JASO-D622,IEC60269 EU and Rosh Directive

Remarks

TUV

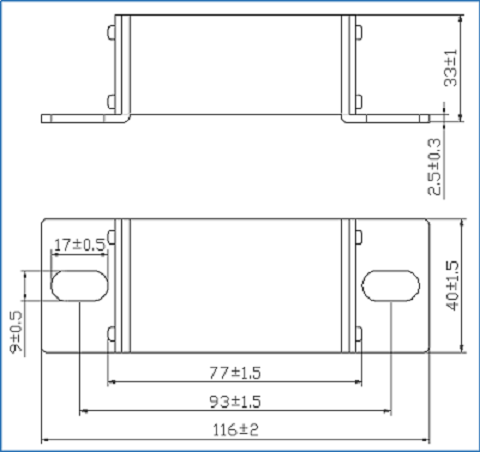

Overall dimensions of the product(mm)

1000VDC High Voltage Ceramic Fuse Low Current ISO8820 Standard

MEV-J-D20

1000VDC High Voltage Ceramic Fuse Low Current ISO8820 Standard

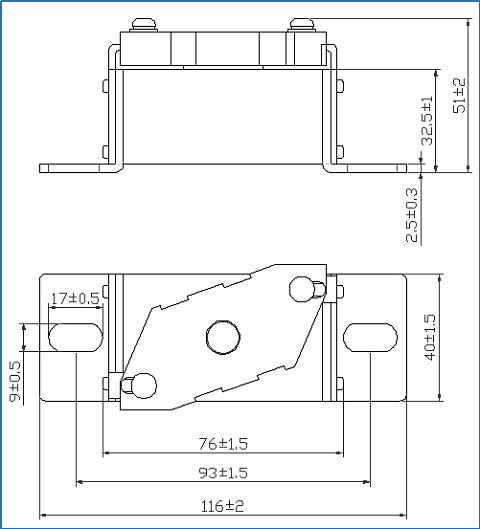

MEV-J-D23(Optional micro switch)

Product type of Ceramic Fuse

Model	Product code	Rated current	I²t(A²Sec)		Power consumption
Model	Product code	Rated current	Pre-arc	Total	Power consumption
MEV-J-D20/MEV-J-D23	MEV-J-D20-350	350	10900	73000	50
	MEV-J-D20-400	400	10900	73000	50
	MEV-J-D20-500	500	19500	133000	67

Certification

1000VDC High Voltage Ceramic Fuse Low Current ISO8820 Standard

Test equipment

Production equipment

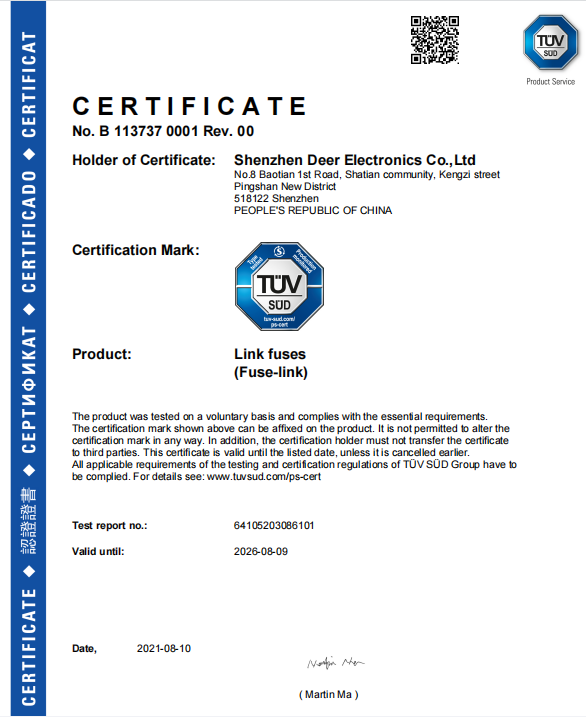

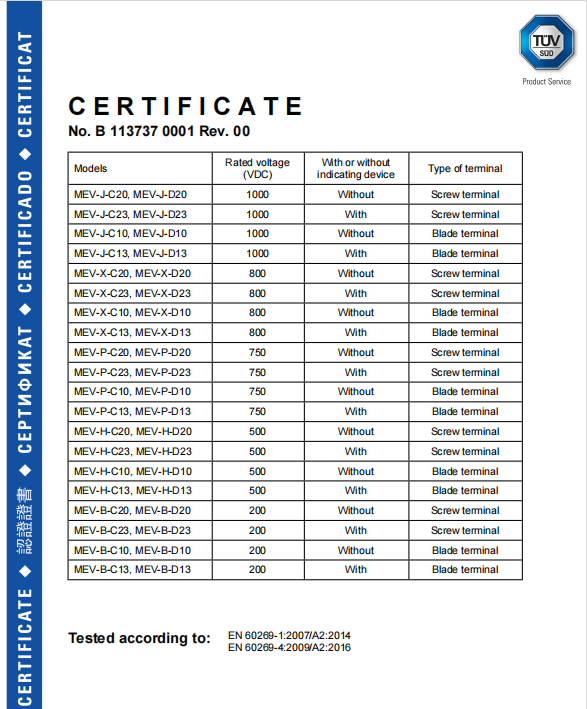

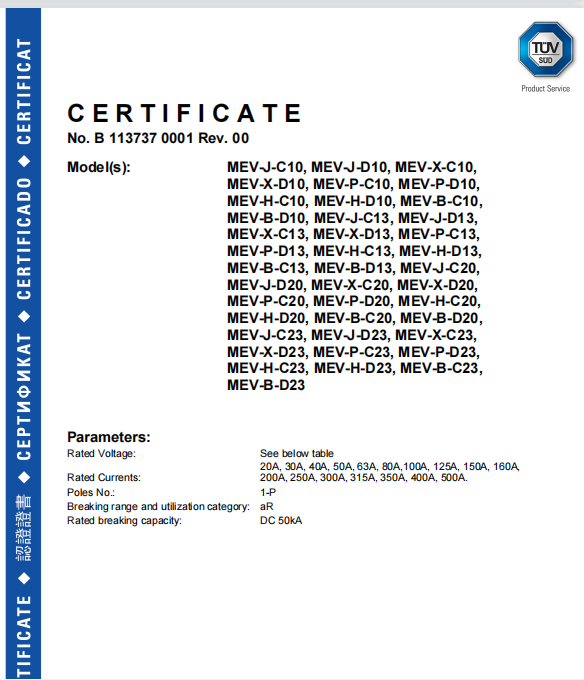

Our Certificates
