ISO8820 Standard Low Voltage Fuses , 32VDC 500 Amp Anl Fuse

Name: ISO8820 Standard Low Voltage Fuses 32VDC 500 Amp Anl Fuse
Brand: Dissmann
Price: 1 USD

Buy cheap ISO8820 Standard Low Voltage Fuses , 32VDC 500 Amp Anl Fuse product

Brand Name : Dissmann

Model Number : DNN-A

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : electric wood shell

Colour : Black

Rated Voltage : 32VDC

Rated Current : 10A-500A

Breaking Capacity : DC2700A

Standard : UL248-13、ISO8820、 JASO-D622、ROHs

Usage : low voltage electric automobile,charging pile module

Keyword : low voltage electric automobile fuse

Contact Now

Time Lag Fuse 32volt DC Fuse Low Voltage Automotive Fuse Mini Fuse

Material:
Noumenon: Electric wood shell
Pins: Copper alloy

Product Presentation:

Rated Voltage

32VDC

Type Protection

Time-lag

Rated Current

10A-500A

Breaking Capacity

DC2700A

Meet the Requirement

UL248-13,ISO8820,JASO-D622,

Europe and RoHs Directive

Remarks

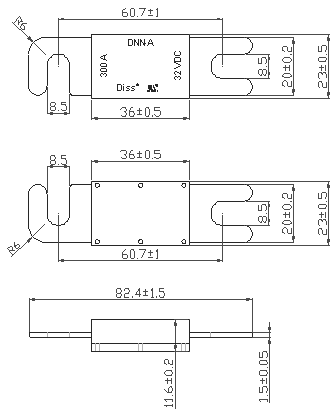

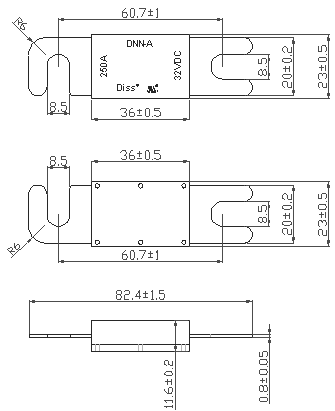

Overall dimensions of the product(mm)

ISO8820 Standard Low Voltage Fuses , 32VDC 500 Amp Anl Fuse

Manufacturing material

Component name	Material
Contact the foot	Copper alloy
Noumenon	Electric wood shell

Performance criteria

Load	Opening time
	10A～500A
	min	max
110%	14400	∞
160%	10	∞
200%(200A or lower)	0	100
200%(200A above	0	300
250%(200A or lower)	0	60
250%(200A above)	0.8	120
600%	0.02	10

Model	Product code	Rated current(A)	Installation requirement
DNN-A	DNN-A-35	35	Install bolt M8, recommended torque 10N·m ±1 N·m
	DNN-A-40	40
	DNN-A-50	50
	DNN-A-60	60
	DNN-A-80	80
	DNN-A-100	100
	DNN-A-125	125
	DNN-A-130	130
	DNN-A-150	150
	DNN-A-175	175
	DNN-A-200	200
	DNN-A-225	225
	DNN-A-250	250
	DNN-A-275	275
	DNN-A-300	300
	DNN-A-325	325
	DNN-A-350	350
	DNN-A-400	400
	DNN-A-425	425
	DNN-A-450	450
	DNN-A-500	500

UL Certificate:

ISO8820 Standard Low Voltage Fuses , 32VDC 500 Amp Anl Fuse
