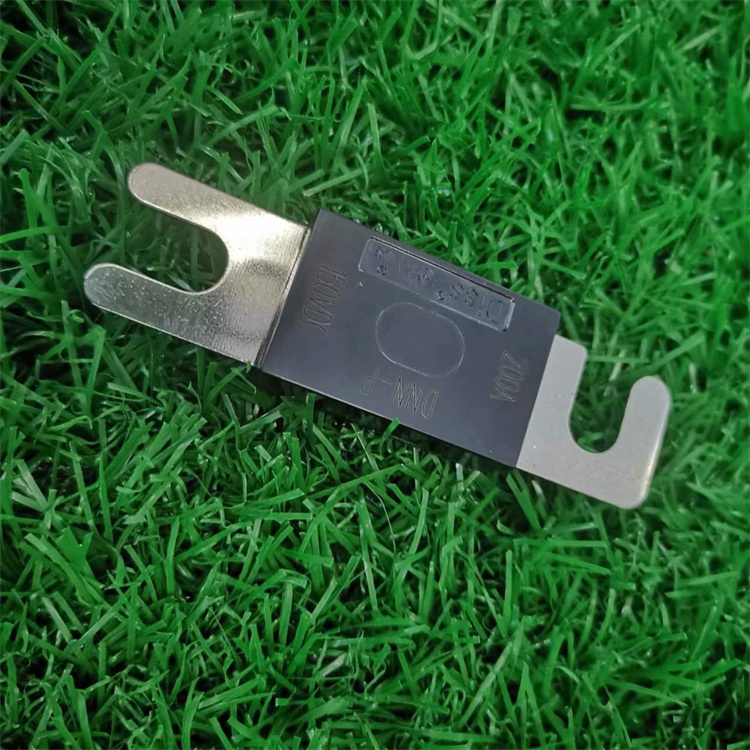

Dissmann® Fuse Low Voltage AC125V/DC80V Flat Plug Fuse DNN-H Series Fuse
Overall Dimensions of the DNN Series AC125V/DC80V Flat Plug Fuse:
Rated Current ≤ 275A Rated Current ≥300A
Size Model:DNN-H
Size Model:DNN-H Flat Plug Fuse
Rated Voltage:AC125V/DC80V
Rated Current:10A-500A
Protection Type:Time-lag
Breaking Capacity:DC2700A
Meet the Requirements:UL248-13,ISO8820,JASO-D622,RoHS
Product Type:
| Model | Product code | Rated current A | Voltage drop mV | Installation requirement |
| DNN-H | DNN-H-35 | 35 | 130 | Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-H-40 | 40 | 125 |
| DNN-H-50 | 50 | 120 |
| DNN-H-60 | 60 | 116 |
| DNN-H-80 | 80 | 112 |
| DNN-H-100 | 100 | 110 |
| DNN-H-125 | 125 | 105 |
| DNN-H-130 | 130 | 100 |
| DNN-H-150 | 150 | 96 |
| DNN-H-175 | 175 | 90 |
| DNN-H-200 | 200 | 86 |
| DNN-H-225 | 225 | 83 |
| DNN-H-250 | 250 | 80 |
| DNN-H-275 | 275 | 77 |
| DNN-H-300 | 300 | 75 |
| DNN-H-325 | 325 | 83 |
| DNN-H-350 | 350 | 81 |
| DNN-H-400 | 400 | 80 |
| DNN-H-425 | 425 | 78 |
| DNN-H-450 | 450 | 78 |
| DNN-H-500 | 500 | 76 |
Rated Current ≤ 275A Rated Current ≥300A
Size Model:DNN-P
Size Model:DNN-P Flat Plug Fuse
Rated Voltage:AC250V/DC150V
Rated Current:10A-500A
Protection Type:Time-lag
Breaking Capacity:DC2700A
Meet the Requirements:UL248-13,ISO8820,JASO-D622,RoHS
Product Type:
| Model | Product code | Rated current A | Voltage drop mV | Installation requirement |
| DNN-H | DNN-P-35 | 35 | 130 | Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-P-40 | 40 | 125 |
| DNN-P-50 | 50 | 120 |
| DNN-P-60 | 60 | 116 |
| DNN-P-80 | 80 | 112 |
| DNN-P-100 | 100 | 110 |
| DNN-P-125 | 125 | 105 |
| DNN-P-130 | 130 | 100 |
| DNN-P-150 | 150 | 96 |
| DNN-P-175 | 175 | 90 |
| DNN-P-200 | 200 | 86 |
| DNN-P-225 | 225 | 83 |
| DNN-P-250 | 250 | 80 |
| DNN-P-275 | 275 | 77 |
| DNN-P-300 | 300 | 75 |
| DNN-P-325 | 325 | 83 |
| DNN-P-350 | 350 | 81 |
| DNN-P-400 | 400 | 80 |
| DNN-P-425 | 425 | 78 |
| DNN-P-450 | 450 | 78 |
| DNN-P-500 | 500 | 76 |
Chinese factory with 20 years experience in fuse production
Production and sales of various types of fuse products, including fuses for electric vehicles, fuses for energy storage systems, fuses for 5G communication systems, fuses for charging piles, photovoltaic fuses, etc.
Fuse and fuse holder products display:
