Automotive Cartridge NH Type HRC Fuse ISO8820 Standard DC750V Rated Voltage

Name: Automotive Cartridge NH Type HRC Fuse ISO8820 Standard DC750V Rated Voltage
Brand: Dissmann
Price: 1 USD

Buy cheap Automotive Cartridge NH Type HRC Fuse ISO8820 Standard DC750V Rated Voltage product

Brand Name : Dissmann

Model Number : MEV-P-E40

Certification : CCC

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : Ceramic

Colour : White

Rated Voltage : DC750V

Rated Current : 400A

Breaking Capacity : DC10KA

Standard : UL248-13、ISO8820、 JASO-D622、IEC60269、ROHS

Usage : PV moduel,Charging pile,Automotive

Keyword： : PV moduel fuse

Contact Now

European Square Fuse 750volt DC Fuse Low Current Fuse Cartridge Fuse

Material:
Noumenon: Ceramic
Pins: Alloy

Features:

Pv Inverter Fuse
Many kinds of Pv Inverter Fuse
Current rating: 400A
Voltage rating: 750VDC/690VAC

Breaking capacity:DC10KA

Product Presentation:

Rated Voltage

58VDC

Type Protection

Time-lag

Rated Current

10A-500A

Breaking Capacity

DC2700A

Meet the Requirement

UL248-13,ISO8820,JASO-D622,

EU and Rosh Directive

Remarks

Overall dimensions of the product(mm)

Automotive Cartridge NH Type HRC Fuse ISO8820 Standard DC750V Rated Voltage

Manufacturing material of Automotive Fuse

Component name	Material
Contact the foot	Copper alloy
Noumenon	Electric wood shell

Performance criteria of Automotive Fuse

Load testing time	Opening time
	10A～500A
	min	max
110%	14400	∞
160%	10	∞
200%(200A and below)	0	100
200%(200A above)	0	300
250%(200A and below)	0	60
250%(200A above)	0.8	120
600%	0.02	10

Model	Product code	Rated current	Installation requirement
DNN-X	DNN-X-35	35	Installation bolt M8, recommended torque 10N·m
	DNN-X-40	40
	DNN-X-50	50
	DNN-X-60	60
	DNN-X-80	80
	DNN-X-100	100
	DNN-X-125	125
	DNN-X-130	130
	DNN-X-150	150
	DNN-X-175	175
	DNN-X-200	200
	DNN-X-225	225
	DNN-X-250	250
	DNN-X-275	275
	DNN-X-300	300
	DNN-X-325	325
	DNN-X-350	350
	DNN-X-400	400
	DNN-X-425	425
	DNN-X-450	450
	DNN-X-500	500

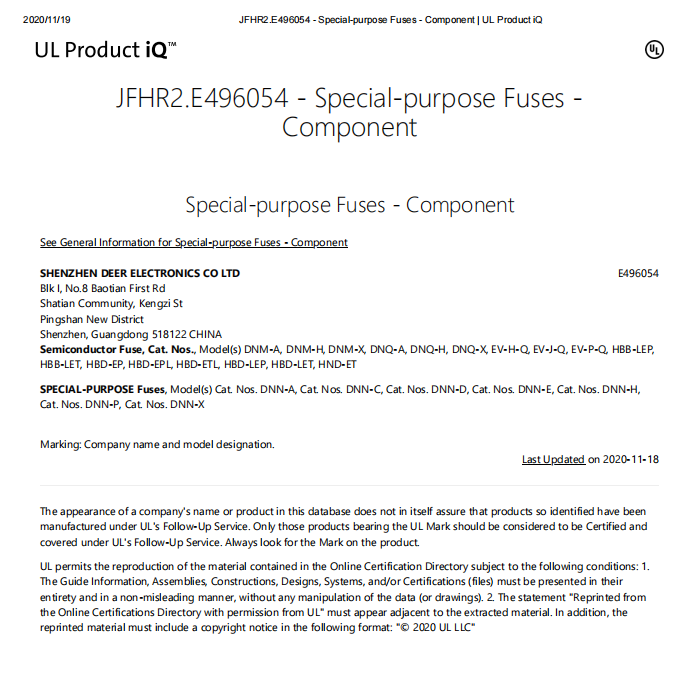

UL Certificate

Automotive Cartridge NH Type HRC Fuse ISO8820 Standard DC750V Rated Voltage

Test equipment

Production equipment

Our Certificates
